Catalog No. : AB221EG

Description:  S.STRUT TRAP-EZE END CON - EG

UPC: 616013119754

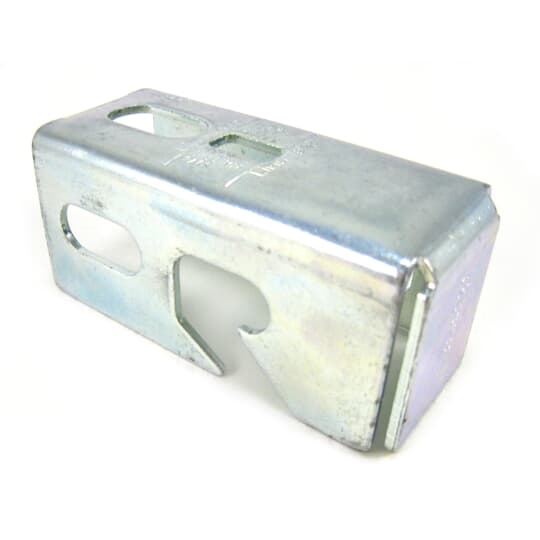

Trap-Eze end mount connector with SilverGalv finish. For use with 3/8 inch and 1/2 inch threaded rod.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Connectors can be reused upon disassembly of a trapeze.
  • Designed for either 3/8" and 1/2" threaded rod.
  • Designed for use with the innovative Kindorf® Trapnut® Strut Fastener, which can take up to 43% less time than standard nuts and washers on retro-fit trapeze applications.
  • View window provides safety zone for strut length.

Descriptors

Category

Cable clamp and staple

Special Features

Easily installs above or to the side of an existing assembly, eliminating the need to disassemble and reassemble the trapeze.

Specifications

Material

Steel

Classifications

Brand Name

Superstrut

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000483 Coupler for support/profile rail

Suitable for

U-profile

Model

Exterior coupler

With screw accessories

N

Material

Steel

Surface protection

Galvanic/electrolytic zinc plated
