Catalog No. : 756LRTP-P0410-DRGS

Description:  35KV 600A DB S-OP CONN TP P0410DRGS

UPC: 783786976133

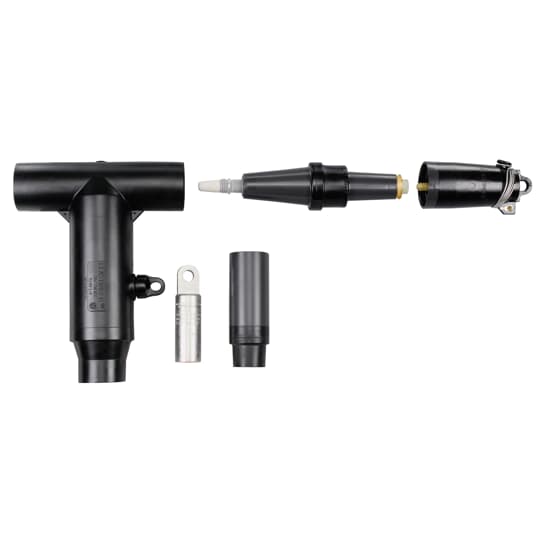

600 Amp, 35kV, Deadbreak, Stick-Op Connector Kit, with Capacitive test point, Aluminum Compression Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical connector assembly

Special Features

Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.

Application

Connect 600 Amp interface to 200 Amp Loadbreak Tap

Specifications

Conductor Range

1000 kcmil

Material

Housing - EPDM Rubber

Color

Black

Enclosure

Yes, EPDM Rubber

Voltage Rating

35 kV

Amperage Rating

600 to 200 A

Insulation

Yes, EPDM Rubber

Temperature Rating

-40 to +65 C

Environmental Conditions

All Weather Conditions

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE Standard 386
ANSI/IEEE Standard 386
