Catalog No. : 70RPS-100

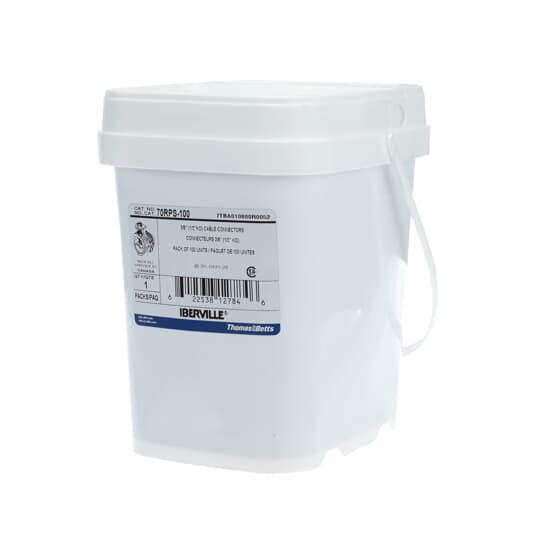

Description:  3/8 IN NMD90/AC90 CONNECTOR PKG/100

UPC: 622538127846

Made or assembled in Canada. Iberville has an extensive line of top quality conduits and cable fittings, many of them Canadian made.

Fitting, One Screw, Trade Size 3/8 Inch, Clamping Range 0.13 Inch - 0.70 Inch, Zinc Alloy, Suggested Application NMD90 14/2-10/2, 14/3-10/3 and AC90 14/2-10/2, 14/3-10/3, 14/4-10/4
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Made or assembled in Canada.
  • To terminate a cable into a box or enclosure.
  • Suggested applications NMD90 (Loomex) 14/2-10/2; 14/3-12/3. AC90: 14/2-10/2; 14/3-10/3; 14/4.

Descriptors

Category

Strain reliefs

Application

NMD90 (loomex) 14/2, 12/2, 10/2, 14/3, 10/3 - AC90 (BX) 14/2, 12/2, 10/2, 14/3, 12/3, 10/3, 14/4

Specifications

Material

Zinc alloy

Classifications

Brand Name

Iberville

Sub Brand

IBERVILLE

Dimensions

Trade Size

3/8 Inch

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC001180 Screw connection for protective metallic hose

Nominal size in inch

3/8 inch

Model

Straight

Revolving thread

N

Construction type

External thread

Connection type screw connection to housing

Thread

One-piece

Y

Material housing

Zinc die-cast

Surface protection

Untreated

Approved in combination with protective conduit DIN EN 61386-23

N

Approved in combination with protective conduit FI

N
