Catalog No. : 696-41848

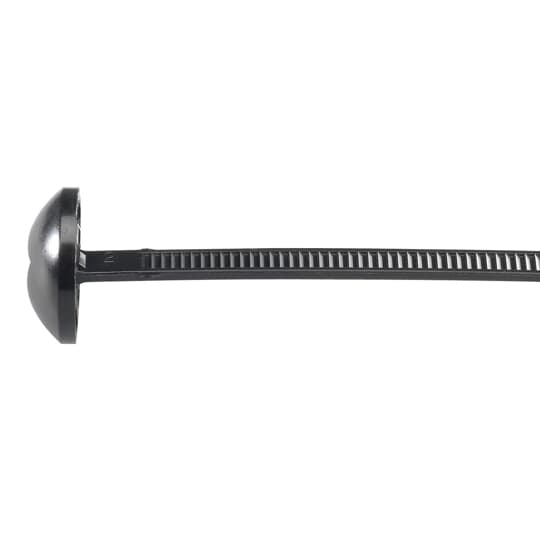

Description:  UNIVERSAL CLAMP, 12.5 IN.

UPC: 786210903163

Panel and Chassis Mounting Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 317.5mm (12.5 Inches), Width of 5.59mm (0.22 Inches), Thickness of 1.65mm (0.65 Inches), Tensile Strength Rating of 289 Newtons (65 Pounds), Mounting Hole Size of 8.13 - 17.27mm (0.32 - 0.68 Inches)
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Cable ties

Specifications

Material

Nylon/Polyamide 6.6

Color

Black

Lock Mechanism

Stainless Steel Barb

Tensile Strength

65 pounds , 289 newtons

Classifications

Brand Name

Ty-Rap

Dimensions

Width

0.22 in , 5.59 mm

Length

12.5 in , 317.5 mm

Thickness

0.06 in , 1.65 mm

Compliance and Certifications

RoHS RoHS3 Compliant

Sustainability

Environmental product declaration

EPD TY-RAP® Mounting Bases US

EPD Ty-Rap Cable Ties US

EPD Ty-Rap Cable Ties CA

EPD Deltec® heavy-duty cable strap US

EPD TyGenic Antimicrobial Detectable Cable Ties EUC-AMA

ETIM EC000046 Cable tie

Band width

5.59 mm

Length belt/tape/tie

317.5 mm

Length belt/tape/tie

12.5 inch

Tie thickness

1.65 mm

Tie thickness

0.06 inch

Min. holding force

289 N

Model

Internal toothing

Band closure

Steel nose

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Halogen free

Y

Colour

Black

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

MIL approval

N

UL approval

Y
