Catalog No. : 656LRTP-K2230-DRG

Description:  15KV 600A DB SOP CONN TP K2230DRG

UPC: 783786484874

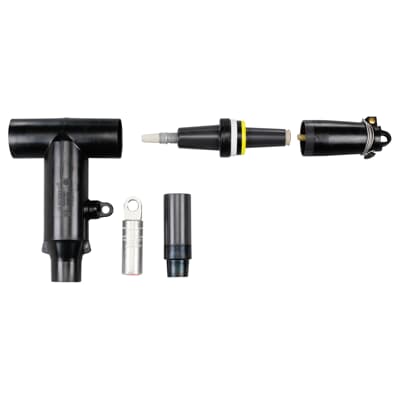

600 Amp Dead Break Connector, Stick Op Connector Kit, with Capacitive Test Point, Cable Insulation Diameter 1090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical connector assembly

Special Features

Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.

Application

Connect 600 Amp interface to 200 Amp Loadbreak Tap

Specifications

Conductor Range

#1 STR/COMPR AWG , 1/0 SOL/COMPT AWG

Material

Housing - EPDM Rubber

Color

Black

Enclosure

Yes, EPDM Rubber

Voltage Rating

15 kV

Amperage Rating

600 to 200 A

Insulation

Yes, EPDM Rubber

Temperature Rating

-40 to +65 C

Environmental Conditions

All Weather Conditions

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE Standard 386
ANSI/IEEE Standard 386
