Catalog No. : 655ETP-J0250-DRG

Description:  15KV 600A DB WINDOWOP NO SEALING

UPC: 75114297004

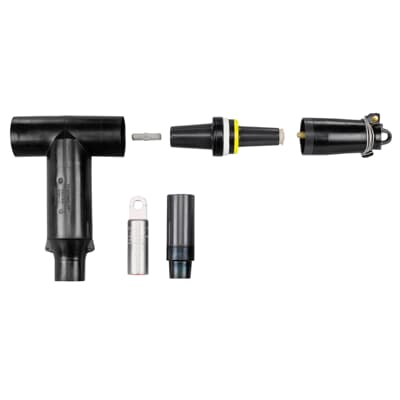

15kV, 600 Amp, DeadBreak, Test and Ground Connector Kit, Includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and 0370 style Compression Lug. Cable Insulation .980-1.180 inches. Aluminum Compression Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Compact/Solid. No Seal.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical connector assembly

Special Features

Includes Insulated Cap

Application

600 Amps, 15kV

Specifications

Connection

Compression

Conductor Range

2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG

Material

Housing - EPDM Rubber

Color

Black

Voltage Rating

15 kV

Amperage Rating

600 A

Insulation

EPDM Rubber

Temperature Rating

-40 to +65 C

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE Standard 386

Dimensions

Size

Cable Insulation Diameter 0.980-1.180 inches.
