Catalog No. : 60278N

Description:  AL 2HL LUG RNGETAKE NT 500-750 YEL

UPC: 786210891774

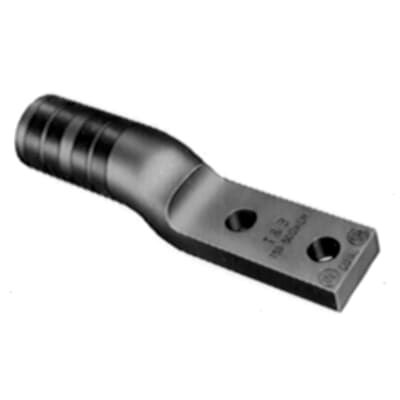

Aluminum Two-Hole Range-Taking Narrow Tongue Lug (1-1/2 Inch Wide), Long Barrel, Blind End, Max 35kV, Wire Size 500-750 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 115H, Die Color Code Yellow
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • For use with aluminum cables and copper cables. Narrow Tongue width of 1 1/2 inches and can be used on a wide wire range.
  • Electro Tin-Plated for Corrosion Resistance. Factory-filled with joint compound.
  • Cable area clearly identified on lug.

Descriptors

Category

Cable or wire lug

Special Features

For use with aluminum cables and copper cables. Narrow Tongue width of 1 1/2 inches and can be used on a wide wire range.

Application

For applications certified for 600 V and recommended up to 35 kV ¥, 90°C

Specifications

Cable Size

500-750 kcmil

Number Of Holes

2

Voltage Rating

35 kV

Insulation

None

Material

Aluminum

Color

Yellow

Classifications

Brand Name

Color Keyed / Blackburn

Standard

UL E9809, CSA 4503, CSA 7222
UL E9809, CSA 4503, CSA 7222

Dimensions

Stud Size

1/2 in

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC001053 Crimp cable lug for aluminium conductors

Material

Aluminium

Sleeve form

Long

Colour

Yellow
