Alternate Catalog No. : 2 T 2

Catalog No. : 2T2

Description:  CU TP TEE MAIN/TAP 2/2

UPC: 783786763177

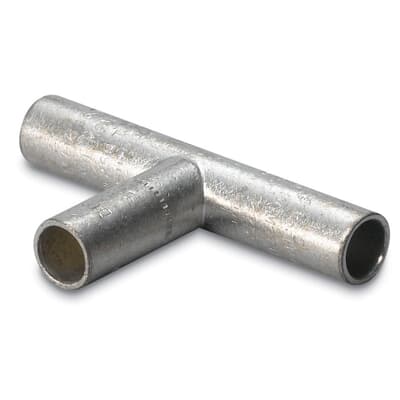

Copper Tin-Plated Tees, main 2, tap 2. 4 inch wide x 2-11/64 inch tall, 0-13/32 inch thick. Dies 3/8 10 TL-TN. #2 Stranded Copper. Silver Brazed Tap. Dimpled.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Made of Tin-Plated Copper for High Conductivity and Resistance to Corrosion.
  • All Tees Marked with Conductor Sizes and Die References for Easy Identification

Descriptors

Category

Wire or cable compression splice

Special Features

Tees Made from Tin-Plated Copper for High Conductivity and Resistance to Moisture. All Tees Marked with Conductor Sizes and Die References for Easy identification.

Application

Tees for Copper Conductors

Specifications

Connection

Compression

Conductor Range

#2 AWG

Number Of Conductors

3

Material

Copper

Finish

Tin-Plated

Insulation

None

Classifications

Brand Name

Homac

Dimensions

Size

Main 4.0 inches long Main Diameter .415 inch, Tap 1.75 inches long Tap Diameter .415 inch.
