Catalog No. : 2RAS18X

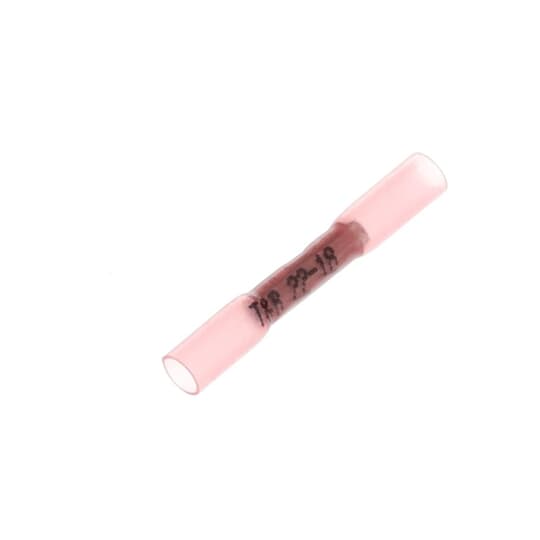

Description: HEAT-SHR BUTT SPLICE 22-18 LEN 1.5
UPC: 786210703268
- Self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
- Application Tools: WT1255
- Alternate Package Qty: RAAS22X
Descriptors
|
Category |
Wire or cable compression splice |
|
Special Features |
Self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure. |
Specifications
|
Material |
Copper |
|
Finish |
Electro -Tin Plated |
|
Color |
Red |
|
Voltage Rating |
600 V |
|
Temperature Rating |
150 C |
Classifications
|
Brand Name |
Sta-Kon |
Compliance and Certifications
| RoHS | RoHS3 Compliant |
| REACH | REACH 233 Compliant |
| TSCA | TSCA Section 6(h) Compliant |
|
AWG-range |
22-18 |
|
Material |
Copper |
|
Surface protection |
Tinned |
|
Insulation |
Other |
|
Colour insulation |
Red |
|
Type of connection |
End connector |
Documents/Support Tools
|
Sales Drawing |
