Alternate Catalog No. : F204A-40/0.03 110V
Catalog No. : 2CSF204199R1400

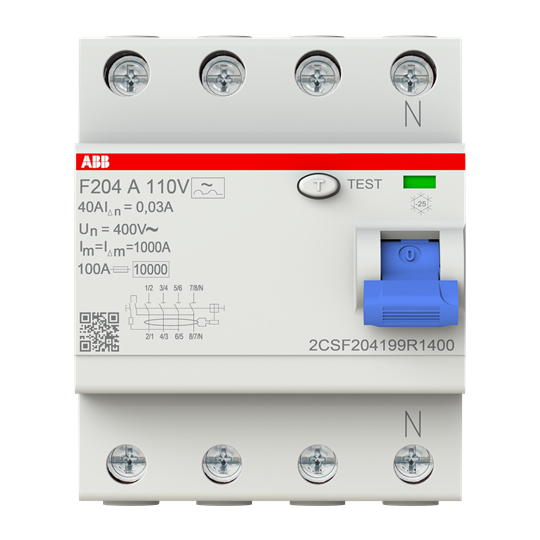

Description: F204 40A 30MA 110V PB TEST VOLTAGE
UPC: 8012542342830
The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. This particular serias has the minimum operating voltage of test buttom 0f 110V and it is suitable for application at 230V.
View More
View Less
For more info visit:
tnb.ca.abb.com/en/
Descriptors
|
Category |
Residual current devices |
Specifications
|
Number of Poles |
4 |
|
Product Main Type |
F200 |
|
Rated Current |
40 A |
|
Rated Operational Voltage |
480Y/277 V AC |
|
Rated Residual Current |
30 mA |
|
Standards |
IEC 61008 |
|
Type of Residual Current |
A type |
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
