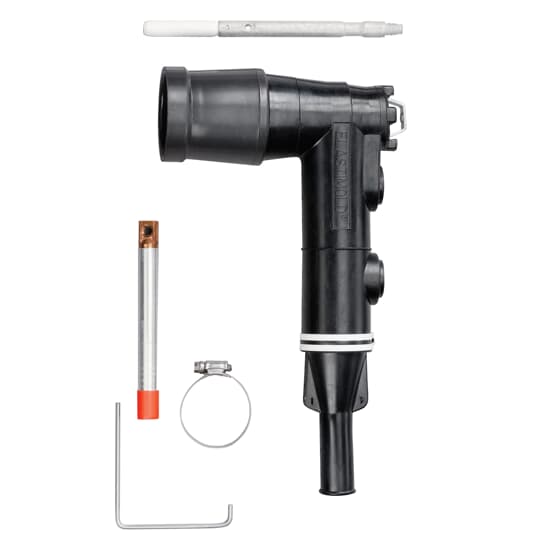

Representative Image

Catalog No. : 273ELR-88110-5250

Description: 25KV 200A LB Repair ELBOW 881105250

UPC: 75114307536

25kV, 200 Amp, Extended Elbow, No Sealing Kit, 200 Amp, 25kV, Loadbreak Repair Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 inches in length. Includes 02509X long Bi-Metal Contact. Cable Insulation Diameter 0.880 inch to 1.100 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.

View More View Less

For more info visit: tnb.ca.abb.com/en/

Specifications
Buy Online

Descriptors

Category	Electrical connector assembly
Special Features	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm).
Application	Designed for connecting to and operating 25kV Class, 125kV BIL apparatus.

Specifications

Connection	Compression
Conductor Range	2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG
Material	Housing - EPDM Rubber
Color	Black
Voltage Rating	25 kV
Amperage Rating	200 A
Insulation	Yes, EPDM Rubber
Temperature Rating	-40 to +65 C
Environmental Conditions	Fully Submersible
