Alternate Catalog No. : AF140N4-30-11-13
Catalog No. : 1SFL447001N1311

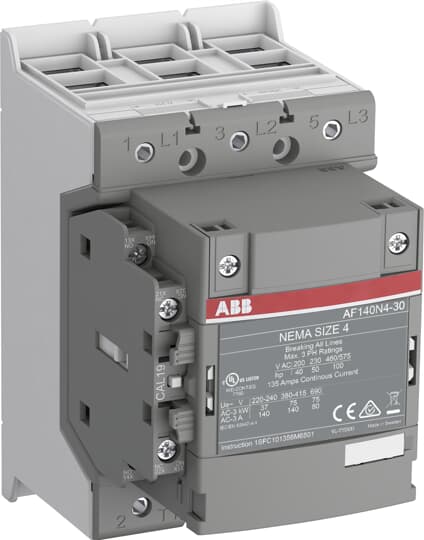

Description: NEMA,SZ4,100-250VAC/DC,1/1
UPC: 7320500543580
Descriptors
|
Category |
AF Contactors |
|
Block Contactor Type |
3-Pole Contactor |
Specifications
|
Product Type |
AF |
|
Object Classification Code |
Q |
|
Terminal Type |
Double Clamp |
|
Rated Control Circuit Voltage |
50 Hz 100...250 V |
|
Number of Main Contacts NO |
3 |
|
Number of Main Contacts NC |
0 |
|
Connecting Capacity Main Circuit UL/CSA |
Flexible 2 x 10 ... 70 mm² |
|
Number of Auxiliary Contacts NO |
1 |
|
Connecting Capacity Main Circuit UL/CSA |
Flexible 2 x 10 ... 70 mm² |
|
Reference Ambient Air Temperature |
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... +50 °C |
|
Rated Operational Voltage |
Main Circuit 1000 V |
|
Number of Auxiliary Contacts NC |
1 |
|
Maximum Operating Altitude Permissible |
3000 m |
|
Rated Operational Current AC-1 |
(690 V) 40 °C 200 |
|
Rated Operational Power AC-3 |
(415 V) 75 KW |
|
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 |
8 x Ie AC-3 |
|
Conventional Free-air Thermal Current |
acc. to IEC 60947-4-1, Open Contactors q = 40 °C 200 A |
|
Rated Frequency |
Main Circuit 50/60 Hz |
|
Rated Short-time Withstand Current |
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 A |
|
Rated Operational Current AC-3 |
(415 V) 55 °C 140 A |
|
Rated Operational Current DC-1 |
(110 V) 2 Poles in Series, 40 °C 160 A |
|
Maximum Electrical Switching Frequency |
(AC-1) 300 cycles per hour |
|
Rated Operational Current DC-5 |
(110 V) 2 Poles in Series, 40 °C 160 A |
|
Rated Insulation Voltage |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
|
Maximum Breaking Capacity |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A |
|
Rated Operational Current DC-3 |
(110 V) 2 Poles in Series, 40 °C 160 A |
|
Coil Operating Limits |
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
|
Maximum Mechanical Switching Frequency |
300 cycles per hour |
|
Operate Time |
Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
|
Secondary Rated Impulse Withstand Voltage |
Main Circuit 8 kV |
|
Coil Consumption |
Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V⋅A |
|
Degree of Protection |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
|
Connecting Capacity Auxiliary Circuit |
Flexible with Ferrule 2x 0.75 ... 2.5 smm² |
Classifications
|
ETIM 6.0 |
EC000066 - Power contactor, AC switching |
|
ETIM 7 |
EC000066 - Power contactor, AC switching |
Dimensions
|
Product Net Weight |
1.55kg |
|
Product Net Depth / Length |
126 mm |
|
Product Net Width |
90 mm |
|
Product Net Height |
150 mm |
Package Information
|
Package Level 1 Width |
207 mm |
|
Package Level 1 Height |
150 mm |
|
Package Level 1 Depth / Length |
216 mm |
|
Package Level 1 EAN |
7320500543580 |
|
Package Level 1 Gross Weight |
1.75 kg |
Ordering
|
Customs Tariff Number |
85364900 |
