Catalog No. : 1543FR-10A-10RM-B
Description: FAULT INDICATOR 3PH AUTO 4-HR RESET
UPC: 783786827527

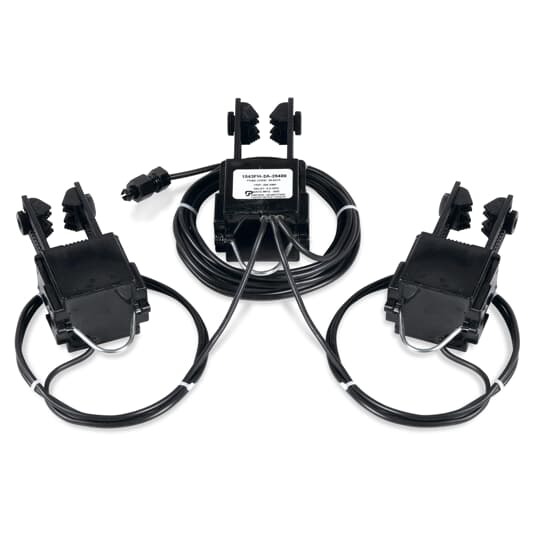

Series 1543 - Underground Faulted Circuit Indicator - Three Phase. Inrush Restraint option F - Inrush Trip Delay. Indication/Battery Option R - LED, replaceable battery, hotstick mounted. Trip Point of 1000 Amps. Reset Time Delay after Fault Occurrence option A - 4 hour automatic reset time delay. 10 foot Remote LED Cable. Display Option R - Remote LED. Cable Clamp Size - Medium - 1.58 inch to 2.36 inch cable diameter.
View More
View Less
For more info visit:
tnb.ca.abb.com/en/
Descriptors
|
Category |
Circuit tracers |
|
Special Features |
Fixed Current Trip with Inrush Delay. Temperature Range -40 Degrees C to +85 Degrees C. |
|
Application |
Triple Phase Underground Applications |
Specifications
|
Model |
1543 |
|
Load Current |
1,000 A |
|
Accuracy |
Trip Current Accuracy +/- 10 Percent |
|
Display |
LED |
|
Battery |
Long-Life Lithium Cell |
Classifications
|
Brand Name |
Fisher Pierce |
|
Standard |
ANSI/IEEE 495-1986 |
